タイトル通り、podman環境下でapcupsdとapcupsd-cgiを動かす話です。
こんなことしなくてもdockerhubになんぼでも先駆者の叡智がうpされてんだからそれ使えばいいじゃんとは思うけどやりたかったんだ。
環境
RocyLinux8.8で動くKVMで動くRocyLinux8.8(KVM上)のPodman
# cat /etc/rocky-release
Rocky Linux release 8.8 (Green Obsidian)
# podman version
Client: Podman Engine
Version: 4.4.1
API Version: 4.4.1
Go Version: go1.19.4
Built: Wed May 17 06:22:45 2023
OS/Arch: linux/amd64
UPSはCyberPowerのCPJ1200
CPJ1200 - UPSシステム | CyberPower
安くてそこそこの容量で結構な出力。
前提
UPSはUSB接続、これをコンテナ内で動くapcupsdに繋いでやる。ついでにapcupsd-cgiでブラウザからも状態が見られるようにする。

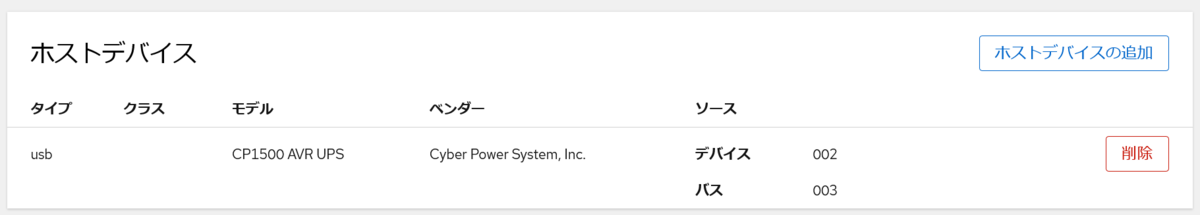

今回はVM上でコンテナを動かすんでホストのUSBをVMに渡してやる。
なんかCP1500って言われてるけど間違いなくCPJ1200です。まあAPC製UPS互換であればAPCだろうがOMRONだろうがCyberPowerだろうがなんでもヨシ!
やるよ
Dockerfile書くよ
Dockerfile書く。docker-composeとか知らん。
FROM rockylinux:8
RUN dnf update -y && \
dnf install epel-release -y && \
dnf install apcupsd apcupsd-cgi apcupsd-gui httpd -y
COPY ./etc_apcupsd.conf /etc/apcupsd/apcupsd.conf
COPY ./httpd_apcupsd.conf /etc/httpd/conf.d/apcupsd.conf
COPY ./startup.sh /startup.sh
RUN chmod 744 /startup.sh
CMD ["/startup.sh"]
適当にこんな感じ。epel追加してやってapcupsdその他必要な奴をインスコするだけ。apcupsd-guiはいらない気もするけど。
COPYはコンフィグ渡すためのやつです。あとはapcupsdとhttpd両方を起動したいからCMDで起動用のスクリプトを呼ぶ。
んでその起動用のスクリプト
#!/bin/bash
/usr/sbin/httpd
/bin/rm -f /etc/apcupsd/powerfail
/sbin/apcupsd -b
httpdは普通に起こすだけ。FOREGROUNDとかしたくなるけどしなくてよかった。下2行はapcupsd起動するやつ、よくわからんのでdnfしたときにsystemdに登録されるやつを頂いてきた。
需要無い気もするけどコンフィグの中身も一応
/etc/apcupsd/apcupsd.conf
どういう設定かちゃんと覚えてはいないけど、ぼちぼちバッテリーきつくなってきたらシャットダウンされるように組んではいたはず。
## apcupsd.conf v1.1 ##
#
# for apcupsd release 3.14.14 (31 May 2016) - redhat
#
# "apcupsd" POSIX config file
#
# Note that the apcupsd daemon must be restarted in order for changes to
# this configuration file to become active.
#
#
# ========= General configuration parameters ============
#
# UPSNAME xxx
# Use this to give your UPS a name in log files and such. This
# is particulary useful if you have multiple UPSes. This does not
# set the EEPROM. It should be 8 characters or less.
UPSNAME CPJ1200
# UPSCABLE <cable>
# Defines the type of cable connecting the UPS to your computer.
#
# Possible generic choices for <cable> are:
# simple, smart, ether, usb
#
# Or a specific cable model number may be used:
# 940-0119A, 940-0127A, 940-0128A, 940-0020B,
# 940-0020C, 940-0023A, 940-0024B, 940-0024C,
# 940-1524C, 940-0024G, 940-0095A, 940-0095B,
# 940-0095C, 940-0625A, M-04-02-2000
#
UPSCABLE usb
# To get apcupsd to work, in addition to defining the cable
# above, you must also define a UPSTYPE, which corresponds to
# the type of UPS you have (see the Description for more details).
# You must also specify a DEVICE, sometimes referred to as a port.
# For USB UPSes, please leave the DEVICE directive blank. For
# other UPS types, you must specify an appropriate port or address.
#
# UPSTYPE DEVICE Description
# apcsmart /dev/tty** Newer serial character device, appropriate for
# SmartUPS models using a serial cable (not USB).
#
# usb <BLANK> Most new UPSes are USB. A blank DEVICE
# setting enables autodetection, which is
# the best choice for most installations.
#
# net hostname:port Network link to a master apcupsd through apcupsd's
# Network Information Server. This is used if the
# UPS powering your computer is connected to a
# different computer for monitoring.
#
# snmp hostname:port:vendor:community
# SNMP network link to an SNMP-enabled UPS device.
# Hostname is the ip address or hostname of the UPS
# on the network. Vendor can be can be "APC" or
# "APC_NOTRAP". "APC_NOTRAP" will disable SNMP trap
# catching; you usually want "APC". Port is usually
# 161. Community is usually "private".
#
# netsnmp hostname:port:vendor:community
# OBSOLETE
# Same as SNMP above but requires use of the
# net-snmp library. Unless you have a specific need
# for this old driver, you should use 'snmp' instead.
#
# dumb /dev/tty** Old serial character device for use with
# simple-signaling UPSes.
#
# pcnet ipaddr:username:passphrase:port
# PowerChute Network Shutdown protocol which can be
# used as an alternative to SNMP with the AP9617
# family of smart slot cards. ipaddr is the IP
# address of the UPS management card. username and
# passphrase are the credentials for which the card
# has been configured. port is the port number on
# which to listen for messages from the UPS, normally
# 3052. If this parameter is empty or missing, the
# default of 3052 will be used.
#
# modbus /dev/tty** Serial device for use with newest SmartUPS models
# supporting the MODBUS protocol.
# modbus <BLANK> Leave the DEVICE setting blank for MODBUS over USB
# or set to the serial number of the UPS to ensure
# that apcupsd binds to that particular unit
# (helpful if you have more than one USB UPS).
#
UPSTYPE usb
DEVICE
# POLLTIME <int>
# Interval (in seconds) at which apcupsd polls the UPS for status. This
# setting applies both to directly-attached UPSes (UPSTYPE apcsmart, usb,
# dumb) and networked UPSes (UPSTYPE net, snmp). Lowering this setting
# will improve apcupsd's responsiveness to certain events at the cost of
# higher CPU utilization. The default of 60 is appropriate for most
# situations.
#POLLTIME 60
# LOCKFILE <path to lockfile>
# Path for device lock file. This is the directory into which the lock file
# will be written. The directory must already exist; apcupsd will not create
# it. The actual name of the lock file is computed from DEVICE.
# Not used on Win32.
LOCKFILE /var/lock
# SCRIPTDIR <path to script directory>
# Directory in which apccontrol and event scripts are located.
SCRIPTDIR /etc/apcupsd
# PWRFAILDIR <path to powerfail directory>
# Directory in which to write the powerfail flag file. This file
# is created when apcupsd initiates a system shutdown and is
# checked in the OS halt scripts to determine if a killpower
# (turning off UPS output power) is required.
PWRFAILDIR /etc/apcupsd
# NOLOGINDIR <path to nologin directory>
# Directory in which to write the nologin file. The existence
# of this flag file tells the OS to disallow new logins.
NOLOGINDIR /etc
#
# ======== Configuration parameters used during power failures ==========
#
# The ONBATTERYDELAY is the time in seconds from when a power failure
# is detected until we react to it with an onbattery event.
#
# This means that, apccontrol will be called with the powerout argument
# immediately when a power failure is detected. However, the
# onbattery argument is passed to apccontrol only after the
# ONBATTERYDELAY time. If you don't want to be annoyed by short
# powerfailures, make sure that apccontrol powerout does nothing
# i.e. comment out the wall.
ONBATTERYDELAY 6
#
# Note: BATTERYLEVEL, MINUTES, and TIMEOUT work in conjunction, so
# the first that occurs will cause the initation of a shutdown.
#
# If during a power failure, the remaining battery percentage
# (as reported by the UPS) is below or equal to BATTERYLEVEL,
# apcupsd will initiate a system shutdown.
BATTERYLEVEL 50
# If during a power failure, the remaining runtime in minutes
# (as calculated internally by the UPS) is below or equal to MINUTES,
# apcupsd, will initiate a system shutdown.
MINUTES 5
# If during a power failure, the UPS has run on batteries for TIMEOUT
# many seconds or longer, apcupsd will initiate a system shutdown.
# A value of 0 disables this timer.
#
# Note, if you have a Smart UPS, you will most likely want to disable
# this timer by setting it to zero. That way, you UPS will continue
# on batteries until either the % charge remaing drops to or below BATTERYLEVEL,
# or the remaining battery runtime drops to or below MINUTES. Of course,
# if you are testing, setting this to 60 causes a quick system shutdown
# if you pull the power plug.
# If you have an older dumb UPS, you will want to set this to less than
# the time you know you can run on batteries.
TIMEOUT 300
# Time in seconds between annoying users to signoff prior to
# system shutdown. 0 disables.
ANNOY 300
# Initial delay after power failure before warning users to get
# off the system.
ANNOYDELAY 60
# The condition which determines when users are prevented from
# logging in during a power failure.
# NOLOGON <string> [ disable | timeout | percent | minutes | always ]
NOLOGON disable
# If KILLDELAY is non-zero, apcupsd will continue running after a
# shutdown has been requested, and after the specified time in
# seconds attempt to kill the power. This is for use on systems
# where apcupsd cannot regain control after a shutdown.
# KILLDELAY <seconds> 0 disables
KILLDELAY 0
#
# ==== Configuration statements for Network Information Server ====
#
# NETSERVER [ on | off ] on enables, off disables the network
# information server. If netstatus is on, a network information
# server process will be started for serving the STATUS and
# EVENT data over the network (used by CGI programs).
NETSERVER on
# NISIP <dotted notation ip address>
# IP address on which NIS server will listen for incoming connections.
# This is useful if your server is multi-homed (has more than one
# network interface and IP address). Default value is 0.0.0.0 which
# means any incoming request will be serviced. Alternatively, you can
# configure this setting to any specific IP address of your server and
# NIS will listen for connections only on that interface. Use the
# loopback address (127.0.0.1) to accept connections only from the
# local machine.
NISIP 0.0.0.0
# NISPORT <port> default is 3551 as registered with the IANA
# port to use for sending STATUS and EVENTS data over the network.
# It is not used unless NETSERVER is on. If you change this port,
# you will need to change the corresponding value in the cgi directory
# and rebuild the cgi programs.
NISPORT 3551
# If you want the last few EVENTS to be available over the network
# by the network information server, you must define an EVENTSFILE.
EVENTSFILE /var/log/apcupsd.events
# EVENTSFILEMAX <kilobytes>
# By default, the size of the EVENTSFILE will be not be allowed to exceed
# 10 kilobytes. When the file grows beyond this limit, older EVENTS will
# be removed from the beginning of the file (first in first out). The
# parameter EVENTSFILEMAX can be set to a different kilobyte value, or set
# to zero to allow the EVENTSFILE to grow without limit.
EVENTSFILEMAX 10
#
# ========== Configuration statements used if sharing =============
# a UPS with more than one machine
#
# Remaining items are for ShareUPS (APC expansion card) ONLY
#
# UPSCLASS [ standalone | shareslave | sharemaster ]
# Normally standalone unless you share an UPS using an APC ShareUPS
# card.
UPSCLASS standalone
# UPSMODE [ disable | share ]
# Normally disable unless you share an UPS using an APC ShareUPS card.
UPSMODE disable
#
# ===== Configuration statements to control apcupsd system logging ========
#
# Time interval in seconds between writing the STATUS file; 0 disables
STATTIME 0
# Location of STATUS file (written to only if STATTIME is non-zero)
STATFILE /var/log/apcupsd.status
# LOGSTATS [ on | off ] on enables, off disables
# Note! This generates a lot of output, so if
# you turn this on, be sure that the
# file defined in syslog.conf for LOG_NOTICE is a named pipe.
# You probably do not want this on.
LOGSTATS off
# Time interval in seconds between writing the DATA records to
# the log file. 0 disables.
DATATIME 0
# FACILITY defines the logging facility (class) for logging to syslog.
# If not specified, it defaults to "daemon". This is useful
# if you want to separate the data logged by apcupsd from other
# programs.
#FACILITY DAEMON
#
# ========== Configuration statements used in updating the UPS EPROM =========
#
#
# These statements are used only by apctest when choosing "Set EEPROM with conf
# file values" from the EEPROM menu. THESE STATEMENTS HAVE NO EFFECT ON APCUPSD.
#
# UPS name, max 8 characters
#UPSNAME UPS_IDEN
# Battery date - 8 characters
#BATTDATE mm/dd/yy
# Sensitivity to line voltage quality (H cause faster transfer to batteries)
# SENSITIVITY H M L (default = H)
#SENSITIVITY H
# UPS delay after power return (seconds)
# WAKEUP 000 060 180 300 (default = 0)
#WAKEUP 60
# UPS Grace period after request to power off (seconds)
# SLEEP 020 180 300 600 (default = 20)
#SLEEP 180
# Low line voltage causing transfer to batteries
# The permitted values depend on your model as defined by last letter
# of FIRMWARE or APCMODEL. Some representative values are:
# D 106 103 100 097
# M 177 172 168 182
# A 092 090 088 086
# I 208 204 200 196 (default = 0 => not valid)
#LOTRANSFER 208
# High line voltage causing transfer to batteries
# The permitted values depend on your model as defined by last letter
# of FIRMWARE or APCMODEL. Some representative values are:
# D 127 130 133 136
# M 229 234 239 224
# A 108 110 112 114
# I 253 257 261 265 (default = 0 => not valid)
#HITRANSFER 253
# Battery charge needed to restore power
# RETURNCHARGE 00 15 50 90 (default = 15)
#RETURNCHARGE 15
# Alarm delay
# 0 = zero delay after pwr fail, T = power fail + 30 sec, L = low battery, N = never
# BEEPSTATE 0 T L N (default = 0)
#BEEPSTATE T
# Low battery warning delay in minutes
# LOWBATT 02 05 07 10 (default = 02)
#LOWBATT 2
# UPS Output voltage when running on batteries
# The permitted values depend on your model as defined by last letter
# of FIRMWARE or APCMODEL. Some representative values are:
# D 115
# M 208
# A 100
# I 230 240 220 225 (default = 0 => not valid)
#OUTPUTVOLTS 230
# Self test interval in hours 336=2 weeks, 168=1 week, ON=at power on
# SELFTEST 336 168 ON OFF (default = 336)
#SELFTEST 336
/etc/httpd/conf.d/apcupsd.conf
標準のやつについて192.168.1.0/24から見えるようにしただけだったような
#
# apcupsd configuration file for Apache Web server
#
# files are off the documentroot of Web server
Alias /apcupsd /var/www/apcupsd
<Directory /var/www/apcupsd>
AddHandler cgi-script cgi pl
Options ExecCGI
</Directory>
#
# Allow only local access at default
# Change the ".example.com" to match your domain or modify
# access rights to your needs to enable remote access also.
#
<Directory "/var/www/apcupsd">
DirectoryIndex upsstats.cgi
AllowOverride None
Options ExecCGI Indexes
<IfModule mod_authz_core.c>
# Apache 2.4
Require ip 192.168.
</IfModule>
<IfModule !mod_authz_core.c>
# Apache 2.2
Order deny,allow
Deny from all
Allow from 192.168.
Allow from ::1
</IfModule>
</Directory>
私の場合は/dev/usb/hiddev0でした。
~完~
他の人の環境だとどうなるかなんて私にはわかりません。 外国人ニキgithub見てたらそこ読んでたからここかな~ぐらいでやったら当たっただけ。
私はルートでpodman動かしちゃってるから関係なかったけどルートレスで動かすならudevルール書いて権限どうにかしないとダメなはず。
なんとなくこうだった気がして書いたけど全部嘘だった部分
ここに書いてある作業しても(少なくとも私の環境では)なんの意味もありませんでした。
次にコンテナにデバイスファイル渡しやすくするためにちょっとudevルール作る
まずlsusbしてVendorIDとProductIDを調べる
# lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 005: ID 0764:0501 Cyber Power System, Inc. CP1500 AVR UPS
Bus 001 Device 002: ID 0627:0001 Adomax Technology Co., Ltd
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
my環境ではこうなった。CP1500がUPSなんでVendorIDとProductIDはそれぞれ0764、0501。
そしたらudevルールの作成。/etc/udev/rules.dディレクトリにこういう内容、ファイル名は適当に。私は見たサイトに合わせて99-serial.rulesにした。
SUBSYSTEM=="usb", ATTRS{idVendor}=="0764", ATTRS{idProduct}=="0501", SYMLINK+="cp1500", MODE="0666"
usb接続の0764 0501についてcp1500ってリンクを作りますってことらしい。そしたら再起動するか下コマンドでルールを反映させる。
udevadm control --reload
すると/dev/cp1500ってファイルが生成されてるはず。されてればおk。
ですが生成されたファイルをpodman runに渡してもUPS認識しません、ってことをここまで書いてから思い出した。
コンテナ作って動かす
あとは普通にビルドして動かすだけ
podman build -t apcupsd:latest .
podman run -d --name apcupsd --device=/dev/usb/hiddev0:/dev/usb/hiddev0 -p 80:80 -p 3551:3551 apcupsd:latest
ビルドは普通にビルドするだけ。
runの指定は
コンテナ名:apcupsd
ホストの/dev/usb/hiddev0をコンテナに/dev/usb/hiddev0で渡す
ホストのポート80と3551をそれぞれコンテナの80と3551に対応させる
イメージはapcupsdのlatest
ってやつ。
ちゃんと動いてたらこれで動いてるはず。あとは他PCのapcupsdをいろいろやってこいつ参照させてシャットダウンできるようにしましょ(割愛)。
cgiはhttp://[ipアドレスorホスト名]/apcupsd/multimon.cgiで見られるはず。
コンテナからホストの電源断するやつは今度やる。絶対やる。
作業中見たサイト群
GitHub - gregewing/apcupsd: Dockerize apcupsd, but keep the ability to power off the docker host in event of a power failure.
最初からこれ使えばよかったような気がすごくします。
APCUPSDの設定方法
config書くたびに確認してる。
podmanコンテナ内からUSBメモリ内ファイルへアクセスする方法 | Armadilloサイト
読んだけどそこまで関係なかった。
Podmanコンテナでpcsc_toolsを動かす
ルートレスでpodmanやるなら多分関係ある。
USBカメラをDockerから使いたい - Qiita
dockerでの話だけどコマンドは基本似たようなもんだし。
Armadillo-IoT(G3/G3L)/X1/640:USBデバイスのデバイスファイルに別名を付ける | Armadilloサイト
UPSのデバイスファイルどこやねん!?って時に使えるかなと思ったけど使えなかった。
